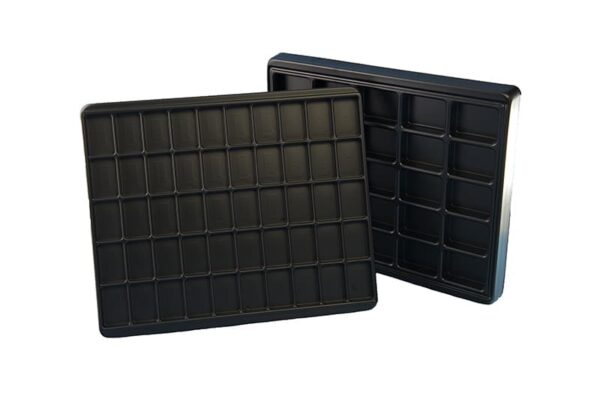

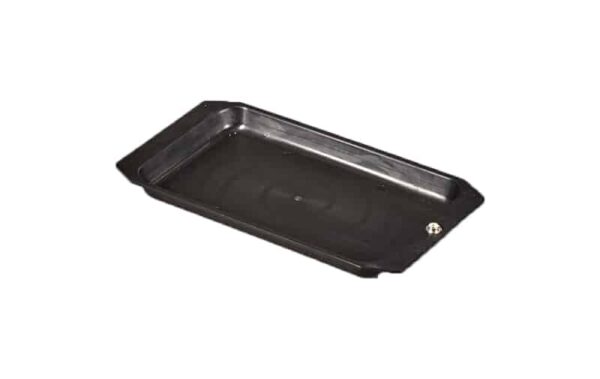

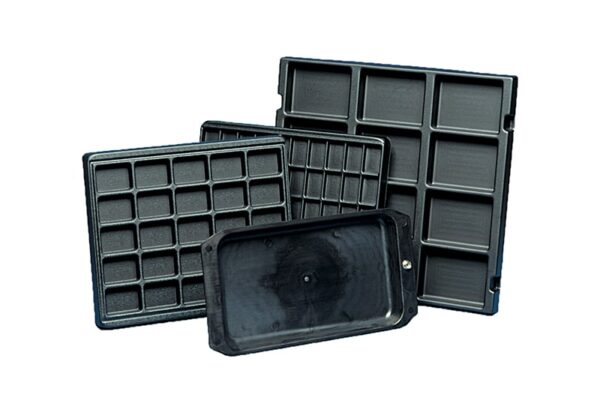

Conductive storage trays

Description Keep high value components secure with Bondline’s conductive component trays. An excellent solution for storing, packaging and shipping static sensitive components and printed circuit boards that require ESD-safe protection. The trays can also be used to aid electronics assembly. Component trays are critical elements of packaging purpose-designed and integral to the safety and security of high value precision parts and components that need a superior level of protection and security in transit or in the plant. The trays are constructed from HIPS (High Compact Polystyrene) which ensures durable, precise and safe storage for the components. Each tray can be vacuum formed in almost any configuration to give versatile method of storage. Trays are available in four combinations to suit all requirements, including various number of cells, sizes and depths. These can be one use options or robust enough for re-use many times over, designed for space saving storage whilst reducing road journeys. Storing components in the correct way ensures safe protection from ESD and physical and mechanical damage. Key Features of Conductive Component Trays: Material: HIPS (High Compact Polystyrene) Four Combinations Available: 1 cell, 12 cell, 25 cell, 50 cell ESD-safe storage and packaging of static sensitive electronic components Can be vacuum-formed in almost any configuration, please get in touch Re-usable Trays can be nested – placed one inside another Affordable prices CE approved RoHS and REACH compliant Compliant according to IEC-61340-5-1 International Standard Specifications: Density: 1.05 G/cm Melt Flow Index: 2 G/10min Tensile Strength: 25 MPa Yield Strength: 24 MPa Elongation At Break: 65% Elongation At Yield: 3% Moudulus of Elasticity: 2200 MPa Vicat softening point 1.0 KG / 5.0KG: 99 Degrees Celsius HDT 0.45 MPa: 90 Degrees Celsius Volume Resistivity: <10^(3) Ωcm Surface Resistivity: <10^(4) Ω Shrinkage: 0.5% Hardness Shore D: 90 Available Options: TY1 – 325 x 175 x 25mm deep. Single cell with 1 x 10mm stud TY12 – 375 x 350 x 25mm deep. 12 cells. 103 x 79 x 24mm TY25 – 305 x 250 x 22mm deep. 25 cells. 50 x 38 x 16mm TY50 – 305 x 250 x 25mm deep. 50 cells. 42 x 26 x 13mm Meets the Following ESD Standards & Regulations: IEC-61340-5-1 CE approved RoHS compliant REACH compliant We have a whole range of component storage at Bondline to suit all needs, from conductive component boxes and component storage cabinets to anti-static foam. For more information or advice on component storage, please call 44 (0)1793 511000 or email [email protected].
