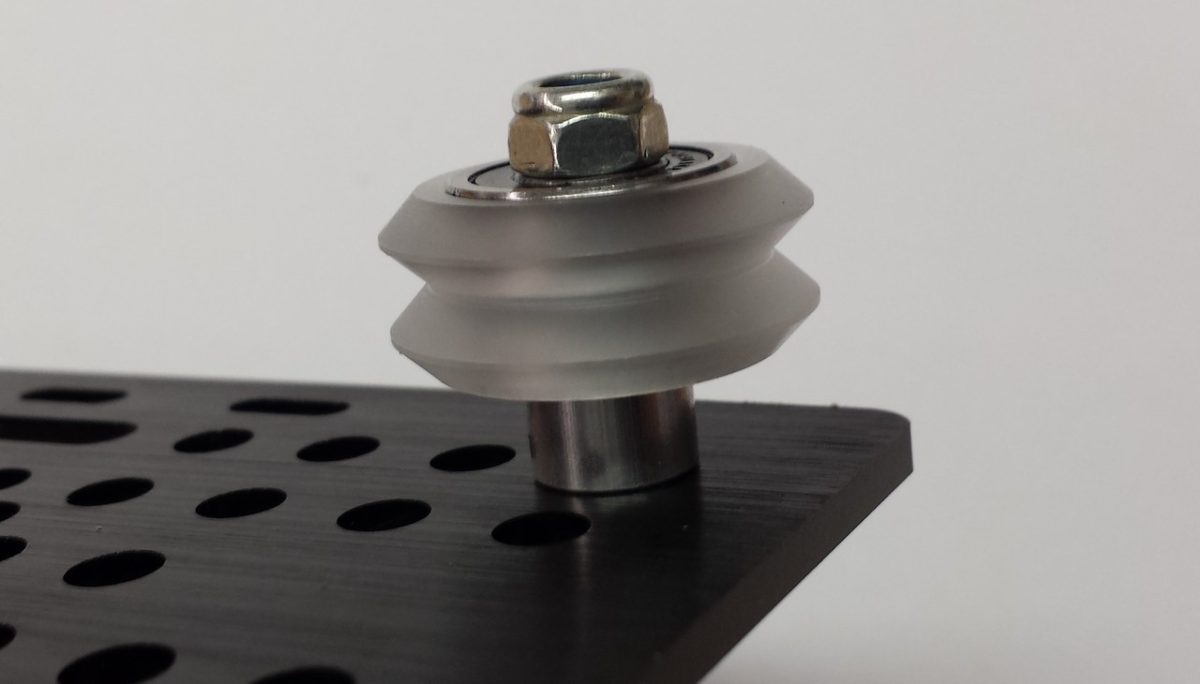

Xtreme Dual V Wheel Kit

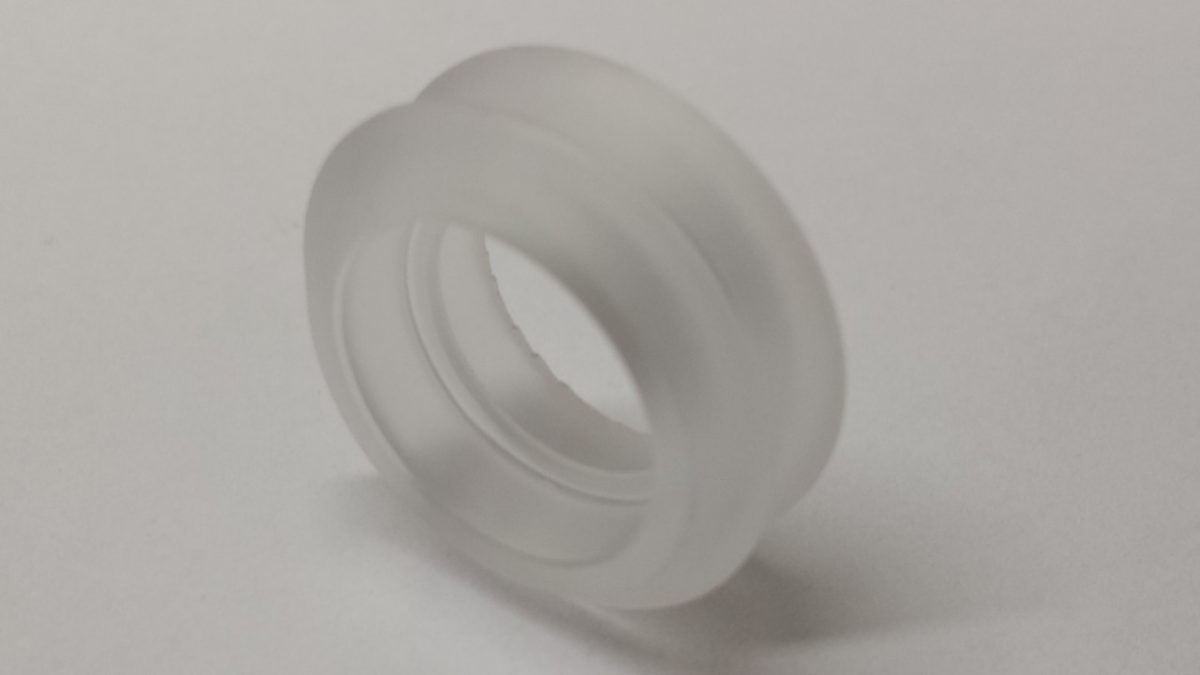

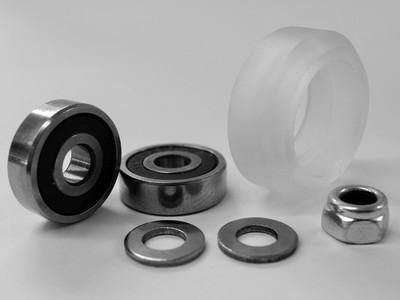

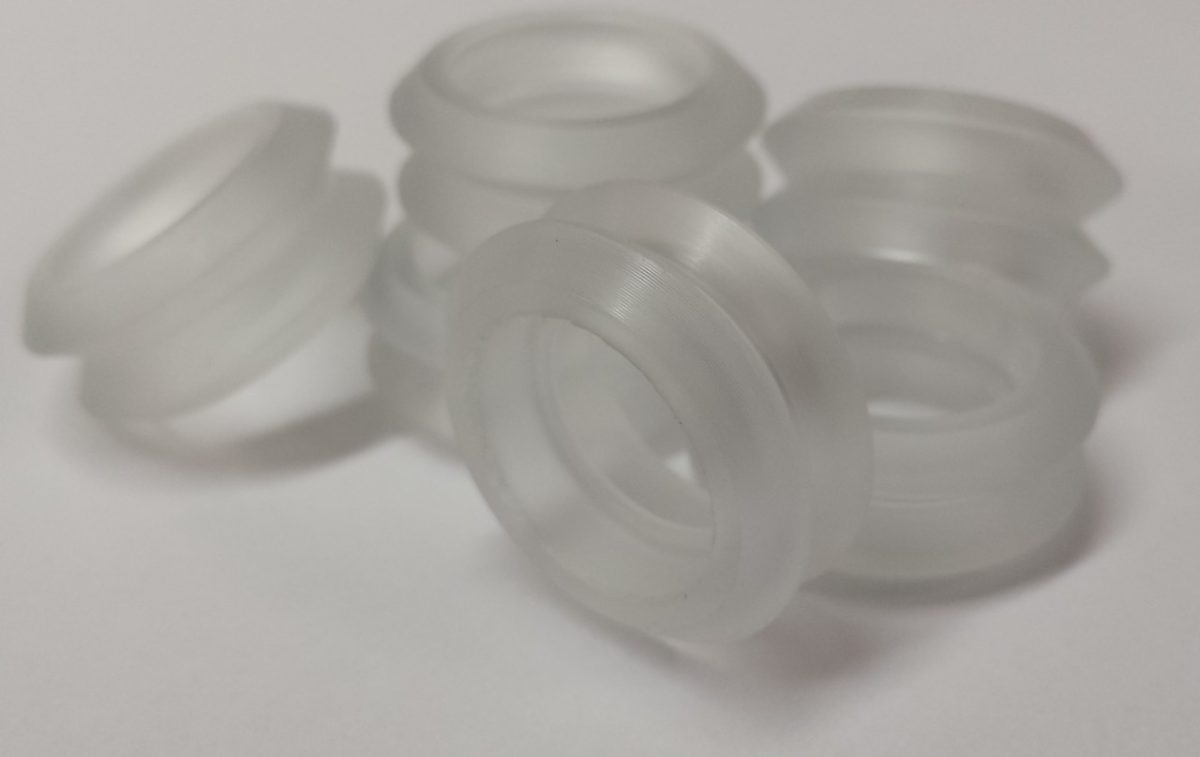

The Xtreme Dual V Wheel is part of the heavy duty Xtreme line of parts, designed with strength in mind. These Xtreme V’s are made from very hard polycarbonate (clear) material which, due to its strong nature, will resist compression and wear and, in turn, leads to better over all precision and strength for your builds. The Xtreme V wheels are designed to be used as a heavy duty alternative to the Delrin V Wheels in applications such as CNC Routers/Mills where force and weight are introduced into the system. So, while the Delrin V Wheels work great for most light load applications the V Xtreme wheels can be used for builds where heavier loads are required and less compression in the delrin is desired. The OpenBuilds Team have tested their wheels at 25lbs. per wheel with no noticeable deflection. Beta testing resulted in unofficial results of 55lb.s per wheel! Many of these wheels could be added to a gantry to allow an even distribution of the load across them. These wheels are individually milled for consistent high precision and tolerance   Wheel Kit Includes all you need: 1 x Xtreme Dual V Wheel 2 x Ball Bearings – 625 2RS 2 x 5mm Precision Shim 1 x Lock Nut with Nylon Insert Don’t forget to order your Spacers, Eccentric Spacers and Low Profile Screws! These wheels are great for use with the V-Slot Linear Guide System.   Part Details Material – Polycarbonate (clear) Dimensions 24.39 OD x 15.974 /- 0.026 ID x 10.23 ‘thick’ Rockwell Hardness M 75 Compressive Strength 86Mpa
