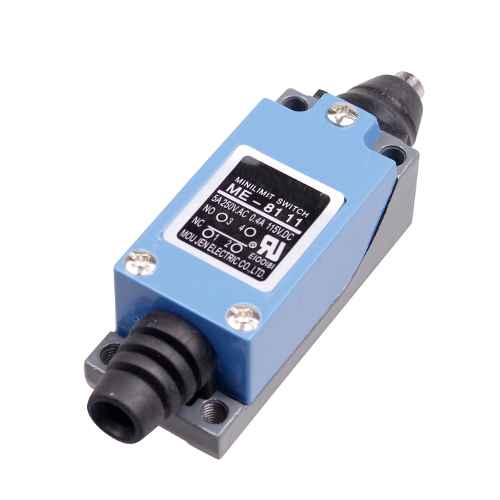

Limit Switch – ME-8111

This Limit switch features a compact design and a long mechanical life. They have easy wiring with full open terminals and dust, water, oil proof construction, and a strong body with a combination of reinforced plastic and aluminum die casting components. Specifications: Actuator Type: Standard Pin Plunger, Automatic Reset Pin Diameter(Approx.):6.8mm / 0.27″ Contact Configuration: 2 NC 2 NO IP Rating: IP66 Power: AC 250V,5A / DC 115V. 0.4A Mounting Hole Diameter: 4.5mm Hole Center Point Distance: 56mm x 21mm Operation speed: 0.5mm-50cm/sec Mechanical: 120 operations/minute Electrical: 30 operations/minute Contact resistance: 25mΩ max. (initial value) Insulation resistance: 100mΩ min. (at 500VDC) Vibration: 10-55HZ,1.5mm double amplitude Mechanical Life : 10,000,000 operations Electrical Life: 500,000 operations Technical Drawing:
