Power Supply – 24V 350W

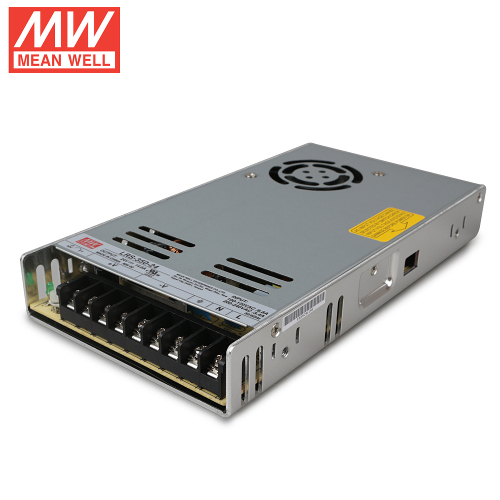

Mean Well LRS-350-24 Switching Power Supply 350.4W 24V 14.6A 115Vac or 230Vac Details: Mean Well LRS-350 350W AC/DC Single Output Power Supply is a single-output enclosed type power supply with 30mm of low profile design. Adopting an input of 115 VAC or 230 VAC (select by switch). A built-in long life fan allows LRS-350 to work from -30ºC to 70ºC with full load. Delivering an extremely low no load power consumption (less than 0.75W), LRS-350 allows the end system to easily meet the worldwide energy requirement. LRS-350 has complete protection functions and 5G anti-vibration capability. Specifications: Manufacturer: Mean Well Output Voltage-Channel 1: 24 V Output Power: 350.4 W Open Frame/Enclosed: Enclosed Input Voltage: 90 VAC to 132 VAC/180 VAC to 264 VAC, 240 VDC to 370 VDC Output Current-Channel 1: 14.6 A Mounting Style: Chassis Length: 215 mm Width: 115 mm Height: 30 mm Input Frequency: 47 Hz to 63 Hz Unit Weight: 760 g Resources: LRS-350-SPEC
