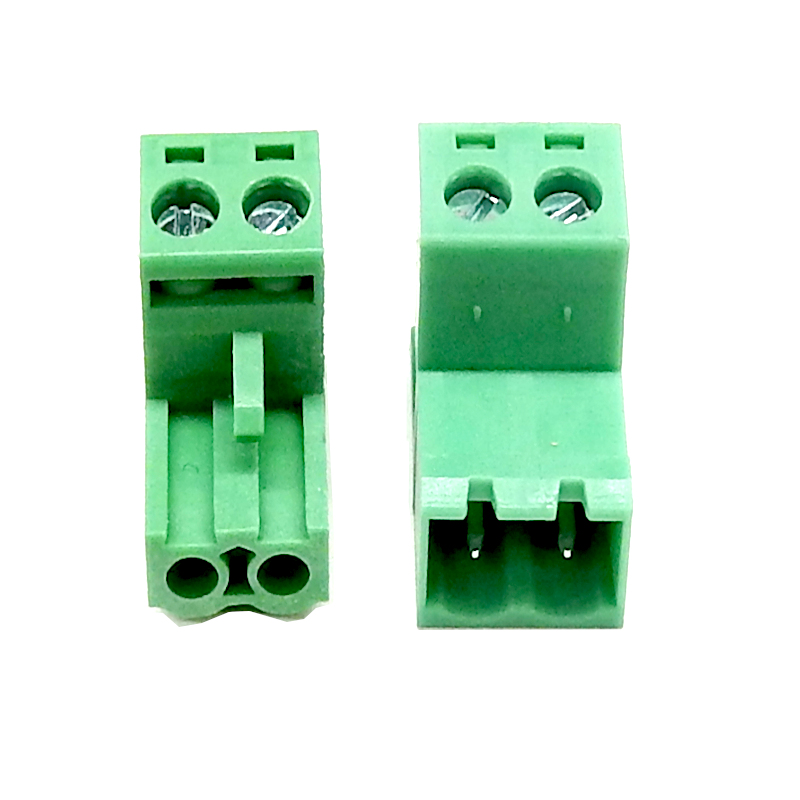

Plug-in Connector Terminal Block – EDG 5.08mm

These Plug-in Connector Terminal Blocks are a simple and efficient and method of terminating your electrical connections. These Connector Blocks come in a pair of Male and Female connectors. Distance between the center of each terminal is 5.08mm Specifications: SKU: ELEC-EDG-P-508 Distance between contacts (centre): 5.08mm Terminal orientation: Straight Connector type: Plug terminal block Connector kind: Male / Female Pieces: 2 Terminal type: Cage clamp, Screw terminal (flat head) Colour: Green Rated voltage: 300V Rated Current: 10A Locking system: Friction lock Operating temperature: -40-105°C Terminal size: Suitable for 2.5mm² wire Housing material: PA66 Recommended stripping length 7-8mm Number of terminals (poles): 2 Pin Pro Tips: For stranded wire: Strip wire to appointed length, mate with the corresponding type of ferrule or lug. Alternatively tin ends with solder. Tighten by hand, do not use power tools.
