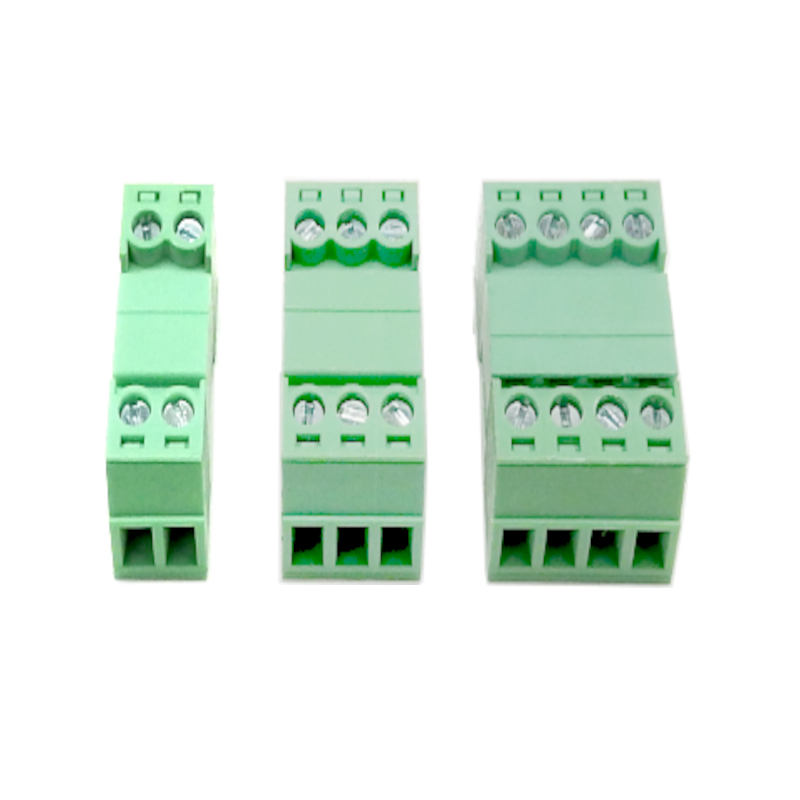

Plug-in Connector Terminal Block – EDG 3.81mm

These Plug-in Connector Terminal Blocks are a simple and efficient and method of terminating your electrical connections. These Connector Blocks come in a pair of Male and Female connectors. Distance between the center of each terminal is 3.81mm Specifications: SKU: ELEC-EDG-P-381 Distance between contacts (centre-to-center): 3.81mm Terminal orientation: Straight Connector type: Plug terminal block Connector kind: Male / Female Pieces: 2 Terminal type: Cage clamp, Screw terminal (flat head) Colour: Green Rated voltage: 250V Rated Current: 7A Locking system: Friction lock Operating temperature: -40-105°C Terminal size: Suitable for 1.5mm² wire Housing material: PA66 Recommended stripping length 6-7mm The number of terminals (poles): 2 Pin 3 Pin 4 Pin Pro Tips: For stranded wire: Strip wire to appointed length, mate with the corresponding type of ferrule or lug. Alternatively tin ends with solder. Tighten by hand, do not use power tools.
