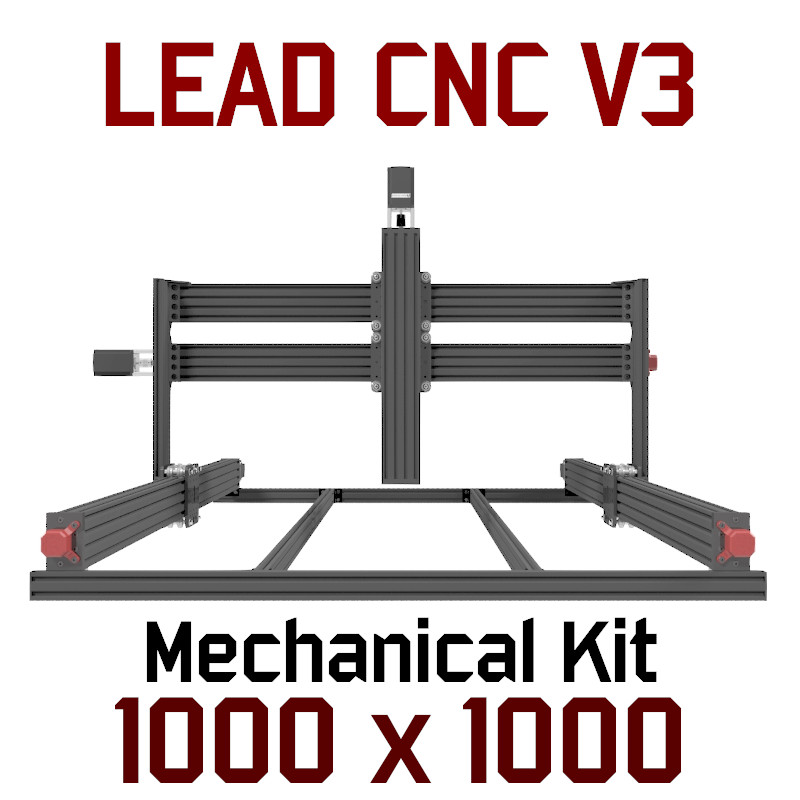

Lead CNC V3 Mechanical Kit – 1000 x 1000 – BLACK

This listing is for the mechanical components only and does NOT include Stepper Motors. Don’t forget to get 4x Nema23 Stepper Motors to suit the kit! Standard Nema23 1.26N.m$30.65Add to cart High Torque Nema23 2.45N.m$49.40Add to cart What is a Mechanical Kit? The mechanical kit is the foundation of your CNC Machine. A mechanical kit includes all the mechanical components needed to build your CNC Machine; All the screws, Tee Nuts, wheels, plates, etc. A Mechanical Kit is a perfect choice if you plan on bringing your own CNC Controller, Stepper Motors or Other Electronics. CNC Add-Ons are required to complete a CNC Machine. These include the electronic system that will control the machine, cable management, and the tool that will be mounted to the machine. About the Lead CNC This is the Maker Store Lead CNC design is and offspring inspired by the original Open Source Lead CNC Machine designed by Mark Carew and the design is licensed under CC – Attribution – CC BY. The Lead Version 3 is a super-strong, accurate and easy to assemble CNC machine-made using off the shelf parts with easily customisable options. It has been designed to accurately cut foams, woods, plastics and aluminium to 0.05-0.10mm accuracy or better. Functional engineering parts, toys, signs or anything else that can be imagined, can be made on the Lead CNC Machine. The Maker Store kit has a few differences from the Open Source design. Some differences include the inclusion of the High Z Mod as standard, use of Black Corner Connectors in place of Cast Brackets in order to increase rigidity, the addition of a Lead screw tensioning system and most notably, the dynamic actuator frame rather than a static frame. The Lead CNC Machine is a 4 axis (3 1) machine, this means there is 3 physical axis (X,Y,Z) and a slave axis of Y which is called the A Axis. With the High Z Modification for the LEAD CNC the Z-Travel is increased to approximately 200mm! This modification revolutionises the work-pieces the LEAD CNC Machine is capable of. The High Z Mod uses dual extrusions for the X-Axis and connected gantry carts to increase the strength and stability while decreasing flex across the X-Z Axis. Assembly Instructions Please note: The Maker Store Lead CNC design is different from the OpenBuilds design. You must follow our instructions when assembling your machine. The instructions are available HERE Dimension Details: Travel (Cutting Area):    – X Axis: 730mm    – Y Axis: 810mm    – Z Axis: Approx 400mm Workable Material Height (max): Approx. 200mm (with a 12mm baseboard) Drive System: TR8x8(P2) ACME Lead Screw Machine Accuracy: 0.05mm – 0.10mm Footprint: 1000mm x 1000mm (not including motors) Compatible Material for Cutting/Milling: Aluminum Hard Wood Soft Wood Plexi Glass Delrin HDPE Foam Kit Includes (Bill of Materials): QTY Description Part Number 8 688Z Ball Bearing – 8x16x5 BEAR-688Z 38 90 degree Angle Corner Connector (V-Slot) BRAC-90ANG 17 Endcap – 2040 BRAC-ENDCAP-2040 3 8mm Metric Lead Screw / ACME – 1070mm HARD-ACME-8-1070 1 8mm Metric Lead Screw / ACME – 540mm HARD-ACME-8-540 1 Anti-Backlash Nut Block HARD-ACME-8-ANTIB-BLOCK 3 8mm Acme Nut Block HARD-ACME-8-BLOCK 14 Lock Collar HARD-COLL-8MM 4 6.35mm x 8mm Flexible Coupling HARD-COUP-635X8 38 Nylon Insert Hex Locknut M5 HARD-NUT-LOCK-5MM 108 Tee Nuts – 1 Piece HARD-TNUT-M5-1 5 Black V-Slot 20 x 40mm – 1000mm LR-2040-S-1000-B 3 Black V-Slot 20 x 80mm – 500mm LR-2080-S-500-B 4 Black C-Beam – 1000mm LR-C-S-1000-B 1 Black C-Beam – 500mm LR-C-S-500-B 2 Joining Plates – 5 Hole 90 degree PLATE-90-5 8 C-Beam End Mount PLATE-C-END 10 C-Beam Gantry Plate – XL PLATE-C-GANTRY-XL 36 M5 Low Profile Screws – 10mm SCREWS-M5-LP-10-1 6 M5 Low Profile Screws – 15mm SCREWS-M5-LP-15-1 46 M5 Low Profile Screws – 20mm SCREWS-M5-LP-20-1 8 M5 Low Profile Screws – 30mm SCREWS-M5-LP-30-1 2 M5 Low Profile Screws – 40mm SCREWS-M5-LP-40-1 2 M5 Low Profile Screws – 55mm SCREWS-M5-LP-55-1 24 M5 Low Profile Screws – 60mm SCREWS-M5-LP-60-1 134 M5 Low Profile Screws – 8mm SCREWS-M5-LP-8-1 20 Eccentric Spacers – 8mm Hex – 6mm Height SHIM-ECCENTRIC-8-6 22 Metric Aluminum Spacers – 3mm SHIM-SPAC-3MM 26 Metric Aluminum Spacers – 6mm SHIM-SPAC-6MM 20 Metric Aluminum Spacers – 9mm SHIM-SPAC-9MM 2 Metric Aluminum Spacers – 30mm SHIM-SPAC-30MM 8 Metric Aluminum Spacers – 40mm SHIM-SPAC-40MM 44 Solid V Xtreme Wheel Kit WHEEL-XTREME-SOLID-V-KIT 2 Black Universal L Bracket – Single BRAC-L1-B 10 Black Universal L Bracket – Double BRAC-L2-B 20 Drop-In Tee Nut -M5 HARD-TNUT-DROP-M5 6 Thrust Bearings BEAR-F8-16M 1 Lead Screw Tensioning Tool TOOL-LST-ACME-8 NOTE: Base/wasteboard is NOT included.
