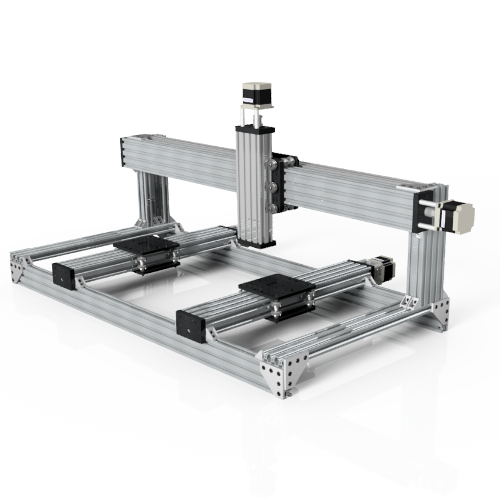

C-Beam Machine CNC XL Kit (includes 4 x High Torque Motors)

This is a complete set of parts required for the C-Beam Machine XL CNC build. Maker Store C-Beam Machine Specs: X Axis Travel 750mm Y Axis Travel 330mm Z Axis Travel 160mm Compatible Material for Cutting/Milling: Aluminum Oak Plexi Glass Delrin HDPE Foam Electronics Needed (Sold Separately): Controller – Take a look at our selection Power Supply – 12V or 24V Depending on your set up Router Spindle Included Parts List/Bill Of Materials:   Maker Store – C-Beam Machine XL SKU Qty Part Name BEAR-688Z 8 Ball Bearing 688Z 8x16x5 BRAC-90CAST 26 Cast Corner Bracket BRAC-L2 2 Double L Bracket ELEC-NEMA23-635-B 4 NEMA 23 Stepper Motor – High Torque Series HARD-ACME-8-1040 1 8mm Metric ACME Lead Screw – 1000mm HARD-ACME-8-290 1 8mm Metric ACME Lead Screw – 290mm HARD-ACME-8-540 2 8mm Metric ACME Lead Screw – 500mm HARD-ACME-8-ANTIB-BLOCK 1 Anti Backlash Nut Block for 8mm Metric ACME Lead S HARD-ACME-8-BLOCK 6 Nut Block for 8mm Metric ACME Lead Screw HARD-COLL-8MM 8 Lock Collar – 8mm HARD-COUP-635X8 4 1/4″ x 8mm Flexible Coupling HARD-NUT-LOCK-5MM Nylon Insert Hex Locknut HARD-TNUT-PACK25 99 Tee Nuts LR-2040-S-1000 1 V-Slot® Linear Rail – 20x40x1000mmxSilver LR-2060-S-1000 2 V-Slot® Linear Rail – 20x60x1000mmxSilver LR-2060-S-500 2 V-Slot® Linear Rail – 20x60x500mmxSilver LR-C-S-1000 1 C-Beam™ Linear Rail – 1000mm LR-C-S-250 3 C-Beam Linear Rail – 250mm LR-C-S-500 2 C-Beam Linear Rail – 500mm PLATE-90-5 10 90 Degree Joining Plate PLATE-C-END 8 C-Beam® End Mount PLATE-C-GANTRY-XL 7 C-Beam® Gantry Plate – Xlarge SCREWS-M5-LP-10-1 34 Low Profile Screws M5 – 10mm SCREWS-M5-LP-15-1 24 Low Profile Screws M5 – 15mm SCREWS-M5-LP-20-1 46 Low Profile Screws M5 – 20mm SCREWS-M5-LP-25-1 6 Low Profile Screws M5 – 25mm SCREWS-M5-LP-30-1 13 Low Profile Screws M5 – 30mm SCREWS-M5-LP-40-1 4 Low Profile Screws M5 – 40mm SCREWS-M5-LP-55-1 8 Low Profile Screws M5 – 55mm SCREWS-M5-LP-65-1 16 Low Profile Screws M5 – 60mm SCREWS-M5-LP-8-1 64 Low Profile Screws M5 – 8mm SHIM-ECCENTRIC 15 Eccentric Spacers – 1/4″ SHIM-SPAC-6MM 15 Aluminum Spacers – 6mm SHIM-SPAC-20MM 8 Aluminum Spacers – 20mm SHIM-SPAC-3MM 14 Aluminum Spacers – 3mm SHIM-SPAC-40MM 8 Aluminum Spacers – 40mm SHIM-SPAC-9MM 12 Aluminum Spacers – 9mm WHEEL-XTREME-SOLID-V-KIT 30 Xtreme Solid V Wheel™ Kit Spindle, spindle mount, controller and power supply, wires and limit switches are not included (see Add-Ons sections above) For variations please email [email protected] Instructions/Example Builds: https://openbuilds.com/builds/c-beam™-machine-plate-maker.2020/ http://makercommunity.info Maker Store Resources Please note that this build requires more than just assembly and may require tapping and/or cutting. If you have any questions please let us know. Tools Required: 3mm Allen key Screw driver 8mm spanner/wrench 10mm spanner/wrench hacksaw (or other means to cut the V-Slot) M5 Tap Wire cutters CREDITS/SOURCE: Designed and built by Mark Carew and published on the OpenBuilds community website under the CC – Attribution – CC BY license. https://openbuilds.com/builds/c-beam™-machine-plate-maker.2020/
