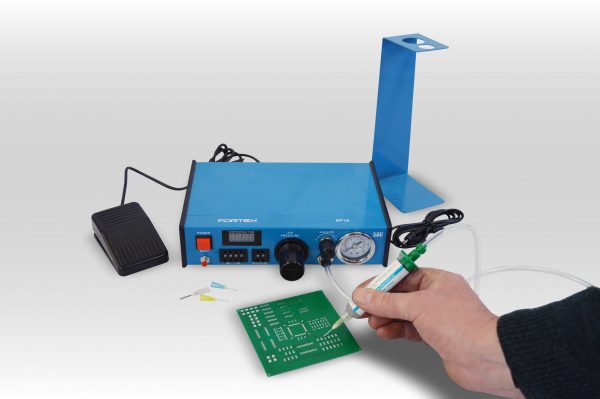

SP1A Pneumatic Automatic Precision Glue Solder Paste Liquid Dispenser

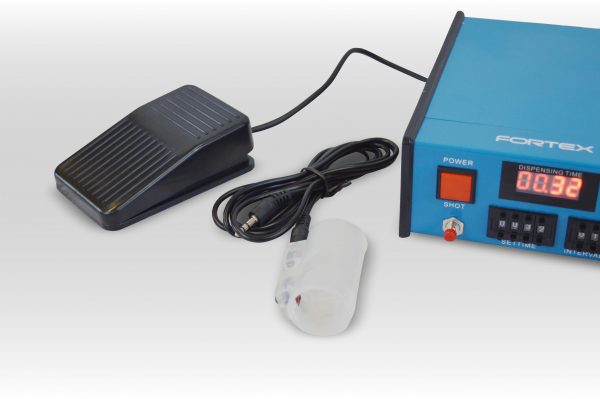

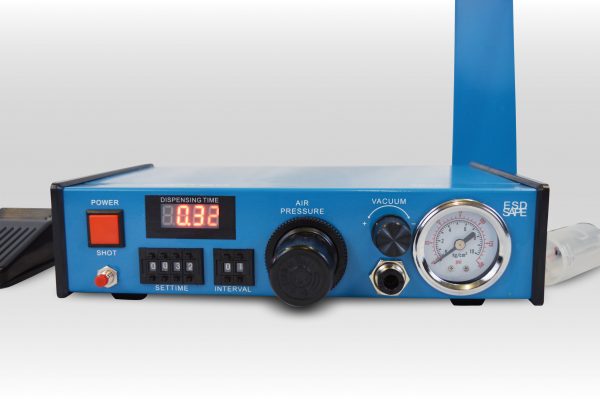

The SP1A Dispenser is used for precise control of pneumatically dispensing of Liquids, Glues, Solderpaste etc. The material pressure can be precisely adjusted with the integrated compressed air regulator and allows for precision dispensing of Solderpaste and or adhesives etc.   The unit has an adjustable time and vacuum suck back feature to aid accurate and easy dispensing. Features -There are 16 operating modes for the operator to choose from.  You can choose Manual mode, semi-automatic mode and full-automatic mode for dispensing -A Display screen is available to show the exact dispensing time. -Dispensing time can be adjusted exactly from 00.01s-99.99s. -Interval duration also can be controlled exactly from 0.1s-9.9s. -Compact size to save working space. -Compatible with almost all adhesives or fluid. -Dispensing volume can be set and controlled freely. -Vacuum suck back suction function stops dilute fluid from unnecessary dripping from the tip. -All parts can be easily assembled and disassembled. -Both the foot pedal and hand switch operating modes are available In MAN mode, when the user presses the foot pedal, the numbers on the screen display will increase from “00.00” til trigger is released, then the number won’t disappear until pressing the trigger next time, which will then count from “00.00” again. In SEMI-AUTO or FULL-AUTO mode, the number on the screen is based on preset dispensing time and interval time. The standard Package is supplied with:- 1pc SP1A Dispensor controller machine 1pc air-in hose 6mm Outer Diameter (For connection to an air compressor) For connection to the output of a standard Air compressor outout Euro connector we recommend a Male Stud Push Fit 6mm OD Push in fitting and a Euro 1/4″ BSP Female Screwed adapter) 1pc foot pedal 1pc finger switch 5pcs Syringe dispensing needles 1pc syringe stand 1pc 10cc Syringe 1pc 230VAC 50/60Hz Main IEC power cable Please note an air compressor is also required. Technical parameters: 1. Dispensing type: Free to set 16 kinds of ways, with dispensing time display 2. Automatic Timing dispensing: 00.01S-99.99S 3. Manually Timed dispensing: Dispenses coating with linear consistency 4. Minimum dispensing: 0.0001 ml 5. Dispensing time interval: 0.1-9.9S(automatic timing function) 6. Input voltage: 220V±10% 50 Hz 7. Internal voltage: 12V DC/ 24V DC 8. Input air pressure: 10-100pSi 9. Output air pressure: 1-80pSi 10. Overall dimension: 235*225*63mm 11. Net Weight: 2.2 Kg
