Manual Screen Printing Machine XL Size

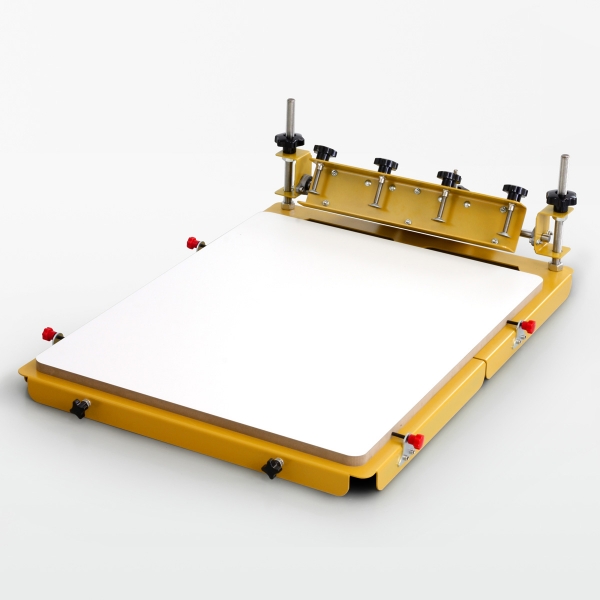

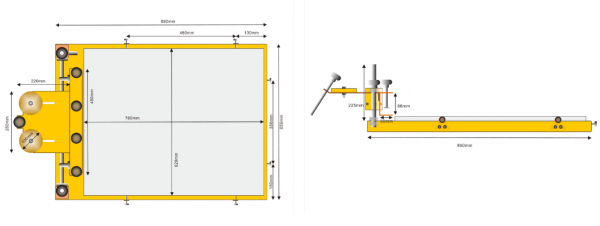

XL Desktop Screen Printing Unit Ideally suited for single and multi colour prints on to substrates such as circuit boards, wood, glass, cardboard, paper, metal plates, plastic or fabric, this screen printing flat bed table could be the perfect choice for you.  For printed circuit boards it can be used to screen print component Idents and solder masks with either conventional silk screen stencils or photo-imageable inks. The height adjustment and registration aids also make it ideal for conventional screen printing on a whole host of materials including front panels and nameplates etc. The Hand Screen Printer has a large base plate of 76 x 62cm A2 A3 Thanks to the height adjustment of the printing arm, bodies with a height of up to a maximum of 15 cm can also be printed. The screen frame holder is 45 cm wide. Thanks to the fine adjustment options, the screen printing frame always lies flat on the print medium. Adjustable rear counter weight allowing different sized screen frames to be used. The height adjustment of the frame folding arm allows for you to print on objects up to 10cm depth. For long term durability the complete unit is manufactured in a fabricated welded heavy steel construction with a durable powder coat finish. Approx dimensions: 660mm x 645mm x 80mm Approx weight: 26kg Size of the machine construction including head with counterweight (length x width): 111 x 65.6 cm
