Ionex Water Treatment

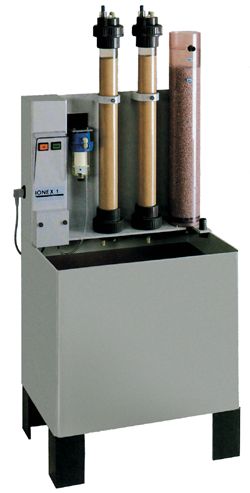

The name IONEX stands for IONEXchanger, which is the very heart of this modern wastewater treatment system.  The Ionex consists of a two-stage filtration, two ion exchange and one PH-levelling units. IONEX is ideally suited for all wastewater cleaning processes in modern PCB prototype laboratories for example PTH (Though Hole Plating Processes) and Etching. The Ionex units are available in four variants with different sump capacities and ion exchange capacities.   Type A and B are equipped with a cotton prefilter, two cation columns and a ph neutralisation column.  Type KA and KB have three ion exchange columns.  A separate spray pump/reservoir module is included with the closed loop K systems. This consists of a secondary reservoir and pump to enable the treated water to be introduced at pressure to the water inlet of the spray wash system being used.   Removal of solids and all heavy metals Post treatment of Etching and Galvanic PTH rinsing water Closed water cylce loop possible (K Version) Decrease of chemical oxygen demand Easy handling and operation Significant change of colour when loaded with metals IONEX A and B perform additional PH neutralization and discharge to the drain IONEX K types offer additional Kation capture for full rinse water recycling Polyethylene filter candle, 10 µm Ion Exchange resins can be regenerated by supplier or user at littles cost. Lower and upper sump level control switch Storage sump for 110 (IONEX A) or 220 litres (IONEX B) of waste water IONEX A (KA) IONEX B (KB) Size (H x D x L): 1400 x 425 x 600mm 1400 x 850 x 600mm Weight: 30 kg 60 kg Tank capacity: 110 l 220 l Cleaning capacity: 10 l/hour 15 l/hour Power supply: 230V~, 50Hz, 50W 230V~, 50Hz, 100W   Type Kation Resin Litre Anion Resin Litre Mineral Granules (kg) Ionex A 3 – 5.75 Ionex B 6 – 7.48 Ionex KA 3 6 – Ionex KB 6 12 –
