PLUVEX-LED UV Ultra Violet Exposure Unit

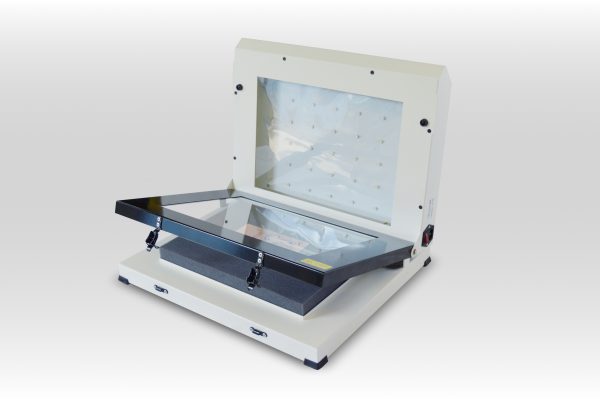

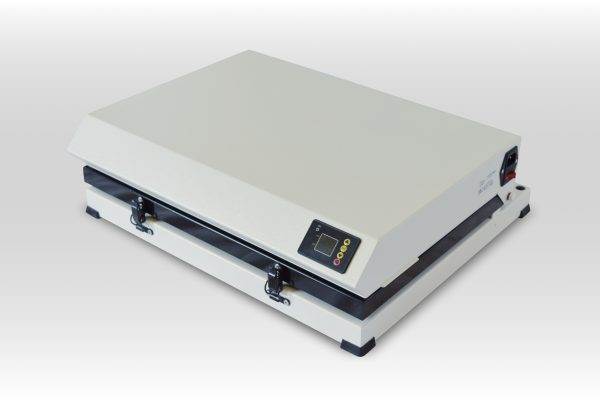

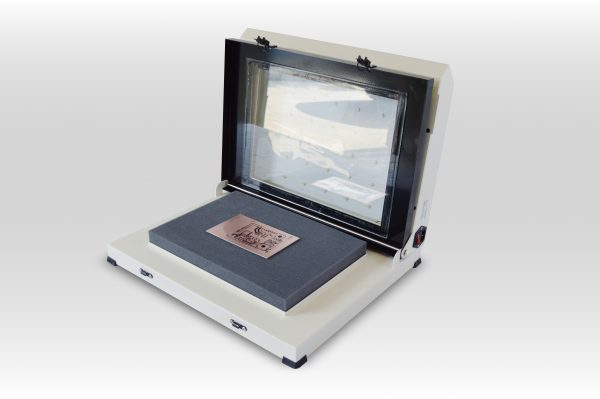

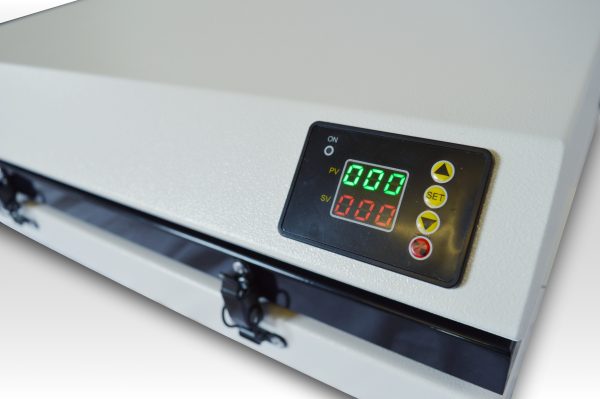

The Pluvex  UV LED exposure unit is a high quality pressure contact UV exposure unit featuring UV LEDs in the lid to aid artwork registration. To perform an exposure, the artwork and UV sensitive material being exposed are placed on the precision exposure foam pressure pad. The separate hinged frame containing 4mm glass is then lowered onto this foam pad. It hinges from the rear of the unit and induces a progressive contact line across the face of the foam pad aiding the expulsion of air between the artwork and UV sensitive material. The frame is then secured with the two front mounting catches to achieve the necessary pressure for the required artwork contact. When the frame is secured the final position and registration of the artwork is checked before lowering the exposure head and commencing the exposure. Exposure is controlled by a programmable 0-999 second digital timer that is set via touch keys. The set time counts down during exposure and a red indicator show that the exposure is complete. The UV LED lamps in the exposure head are screened with a special membrane which protects the operative from the potential hazards of live electrical parts. The foam exposure pad sits in a tray and can be easily removed for cleaning or quick installation of exposure trays for non-contact curing. The Pluvex is supplied with an IEC socket and moulded socket with integral rocker switch. Exposure area 355 x 254mm 42 x UV LEDs Glass plate with high UV transparency for UV-A transmission Easy alignment feature All metal construction with Steel case Can be used for UV curing (Foam is removable from Metal Tray) Peak wavelength 350-400nm Mains on/off switch and indicator IEC Mains cable and plug 100-240VAC 50/60Hz 15 Watts Power Consumption Weight 11Kg Dimensions of unit 500 x 440 x 150mm Fortex type PLUVEX-LED
