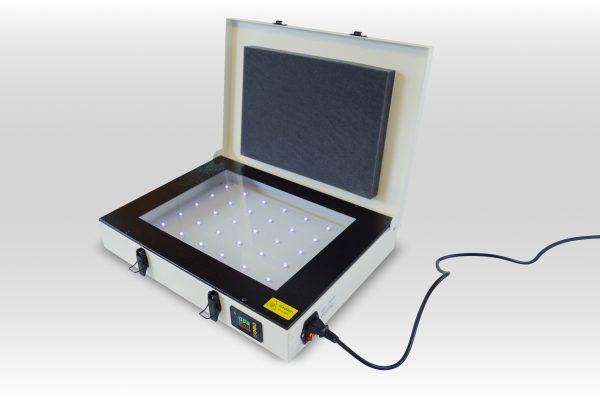

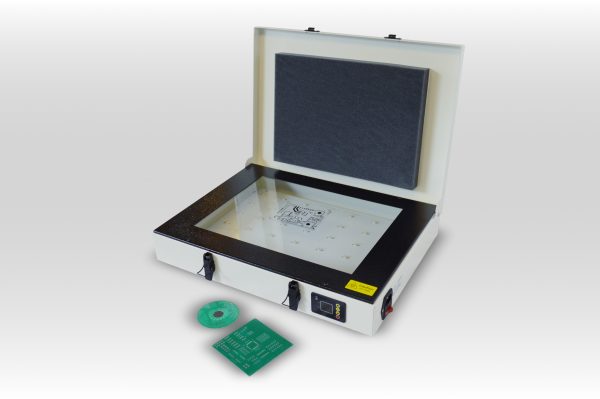

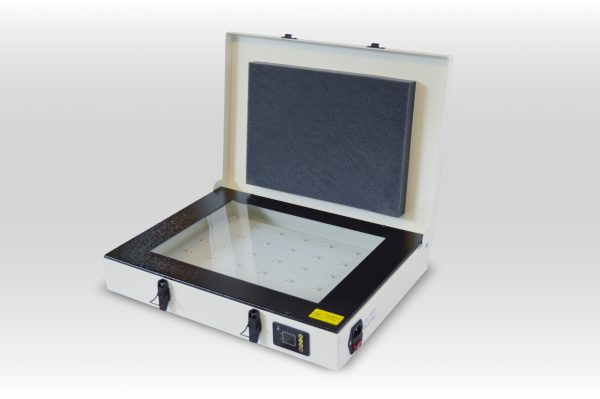

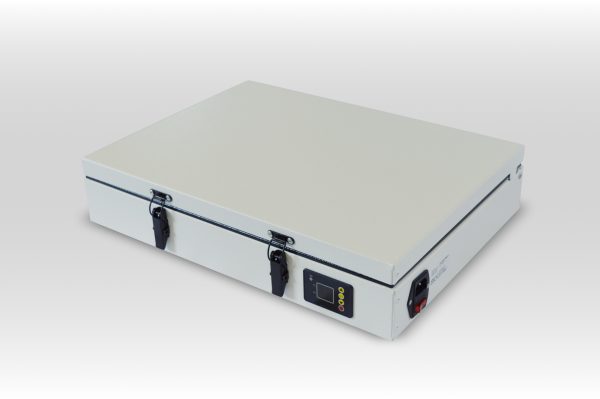

UV Ultra Violet Exposure Unit Model LV204 LED

The LED Lamps are in the base which means the artwork has to be registered on the UV sensitive area and then placed face down onto the exposure area. Constructed from Steel each unit has a hinged lid containing a pressure pad which, when the lid is held closed by the two retaining clips, acts to force the artwork and sensitive material firmly together on the UV illuminated area. Note: These UV units are designed to expose rigid materials. To expose UV sensitive flexible material we recommend the vacuum UV units. LV204-LED The LV204 controls consist of a 0-999 Seconds digital timer that is set via touch keypad, with a 7 segment  LED display. The set time counts down during exposure and then flashes to indicate that the exposure is complete.  On power up the UV exposure unit runs through an automatic cycle to warm the UV tubes up to give consistent exposure times. UVA Tubes have a peak emission of 360 – 400 nm Exposure area 260 x 356mm (10.25″ x 14″) 42 x LED UV Lamps Glass plate with high UV transparency for UV-A transmission Electronic ballast with no stroboscopic effect and no flicker Constant and even pressure from cellular film in lid and glass plate All metal construction with Steel case Peak wavelength 350-400nm Mains on/off switch and indicator Mains cable and 13A plug IEC Input 100-240VAC 50/60Hz 15 Watts Power Consumption Weight 11Kg Dimensions of unit 515 x 400 x 120mm Fortex type LV204-LED Model Working Area Timer  UV Output Dimensions  Weight LV204_LED 260mm x 356mm (10.25″ x 14″) 0-999 Seconds 42 UV LED Lamps 515x400x120mm 11.0 KG Shipping Dimensions 54 x 43 x 17cm
