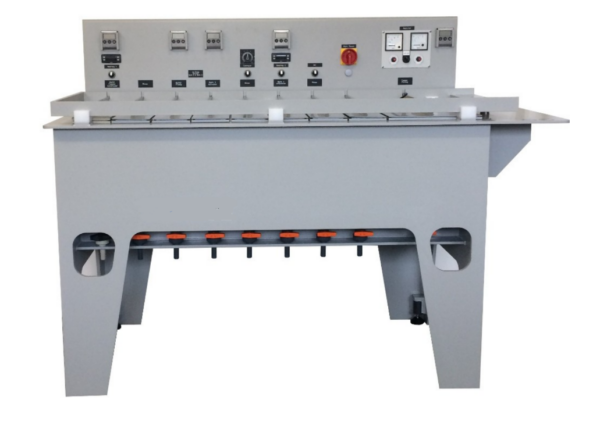

PTH3040 PTH3040 Plated Through Hole PCB Machines

PTH2030 and the PTH3040 are a universal series of electroplating equipment for the chemical or electrochemical deposition of metals and are used for production of printed  Plated Through Hole circuit boards in vertical technology for prototype and small batch production. The PTH2030 and PTH3040 were designed specifically for the needs of direct metalliza-tion and have tanks for the processing steps of cleaning, pre-dip, activating, accelerating (intensify-ing) and copper plating. In addition, the machines have an additional tank, that you do not need for our PTH-system but possibly for other chemical systems. We offer the machine by default as PTH2030 for panel sizes of 210 x 300mm2 with one gal-vanic tank and as PTH3040 for a panel size of 300 x 400 mm2 with one galvanic tank. Two treatment tanks are equipped with Titanium heaters and thermostatically controlled. The plating tank has an integrated air injection. The cathode rods are driven by a push rod with a DC gear motor. The stroke speed can be continuously adjusted. Each plating tank is associated with one continuously variable rectifier. For each tank a voltmeter and an ammeter provide information about the electrical ratings. Since the rinsing process is of par-ticular significance, the machine is equipped with a rinsing tank behind each treatment bath. These can be cleaned through an overflow with an rinse water treatment plant AquaPur.  The process baths used are based on the proven technology of palladium (direct metallization using palladium as a catalyst). Technical Data PTH2030 PTH3040 Function Plating through hole (PTH), copper galvanic Plating through hole (PTH), copper galvanic Working area [mm] 210×300 (250×350 possible 300 x 400 (350×450 possible) Electrical connection 230 V AC, 50-60Hz 230 V AC, 50-60Hz Power consumption [W] 1500/2000 Volume of treatment tanks [l] 10/20 Volume of galvanic tank [l] 30/60 Weight [kg] 130/200 Height [mm] 1365 1250 Working height [mm] 1000/900 Total depth [mm] 750 867 Total Width [mm] 1810 1520 Water inlet spout [mm] 16mm/25 mm Water inlet spray tank spout [mm] 16mm/16 mm Water outlet spout [mm] 30mm/30 mm Benefits of machine — Modular construction — Compact design — Easy operation, easy handling — Clean work flow — Uniform deposition of copper on the surface and the drill hole — Automatic rinse water exchange possible Construction of machine (basic module) — Machine frame completely made from PVC — 5 treatment basin — electroplating tanks — separate rinsing section for every process step — Automatic rinse water exchange possible — anode frame — Drain valve and cover for each basin — Air injection for copper bath — Agitation on all tanks, infinitely adjustable — 2 Titanium heater — main switch — Electronic rectifier, current or voltage constant mode Available accessories and optional changes: — Safety tray — exhaust hood — Vibration motor — Flow optimization through special nozzles — Set of Anodes — chemicals — PCB holder — Filters for galvanic baths — Ion exchange equipment for rinsing — Change the size of the pool according to the re-quired working surface Optional processes possible with these machines: — Because of the modular structure the following additional processes can be integrated into the equipment: — Tinning (subtractive technology) — Desmear, Blackening, tin stripping — Immersion Tin — Organic protective layer (OSP) — Electroless nickel / gold or — Immersion Silver — Galvanic nickel / gold Stripper negative resist
