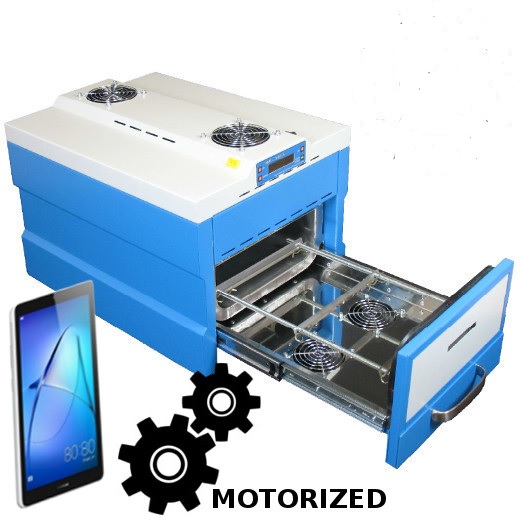

RF175 Solder Reflow Oven Motorised Door

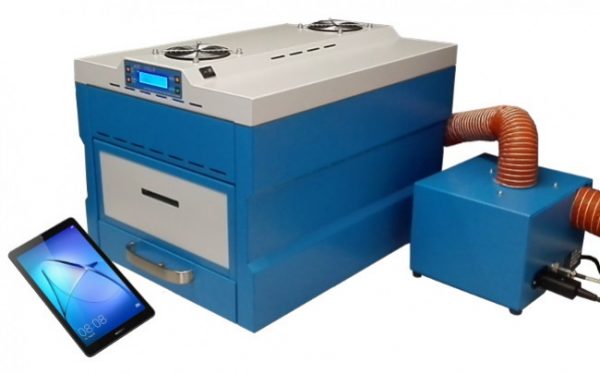

Table Reflow Oven Model  RF175 with automatic door opening Industry 4.0 ready, Bluetooth communication tablet IR convection heating. – Android application for connecting to Tablet or Smartphone – 100 various users programs – Solder exhaust dump integrated inside reflow chamber Oven description: Benchtop Reflow oven with IR and convection heating. Forced hot-air convection ensures uniform temperature profile in whole chamber. After door opening automatically cooling fans are switched on and cool-down soldered PCB quickly. Operation: Connect the oven to an electrical power source and the dump exhaust to an exhaust system. After first switch-on oven is searching for paired Tablet or Smartphone. When both are connected in the Android App you choose programing of oven. Here are programmable temperature and time of preheating as well as temperature and time for soak and other data. When threoven is already programmed the user can control process with buttons and display on the front panel. There is an acoustic signal started when reflow process is over. The same signal appears on the Tablet/Smartphone. Android application displays process status, time and temperature and other information . Technical Data: Source: 230 V, 50 Hz Max Power: 3100 W Temperatures: 50-260 °C Dimensions: 510x370x340 mm Max weight: 16 kg Grid dimensions: 350×220 mm Max dimensions of PCB: 300×200 mm Max. components height on PCB: 50 mm top side, 30 mm bottom side Optional Fume Extraction Unit FE-RF175 Extraction unit for reflow oven RF175 It sucks the soldering fumes only after the melting is finished. Due to the forced air flow in the oven, the cooling time is reduced.   The suction unit includes a fan and a switching unit. Connects to prepared RF175 oven connectors. The oven control system controls the fan speed. During preheating and re-melting, the speed is minimal to prevent cold air being drawn into the furnace. cycle. Just after finishing the rewind before the door is opened, the fan speed is increased to a maximum for complete exhausting after soldering. The fan speed is again reduced to a minimum after the furnace has cooled to ground temperature. The outlet from the suction unit can be connected either to the central suction inlet or to a separate filter unit. Accessory Contents: Power supply cable 230V / 50Hz – male for direct connection to RF175 Signal cable – fan speed control from the furnace control board Inlet hose 1 m with a diameter of 50mm Outlet hose 1 m with a diameter of 56 mm. Never shorten these hoses for sufficient cooling of the exhaust oven!
