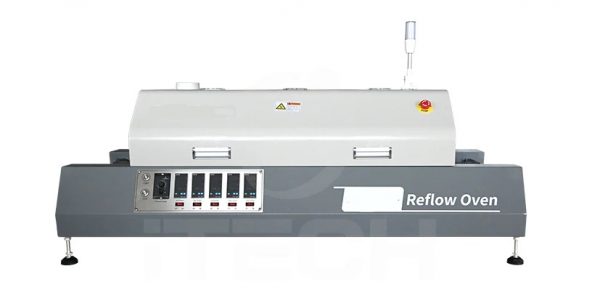

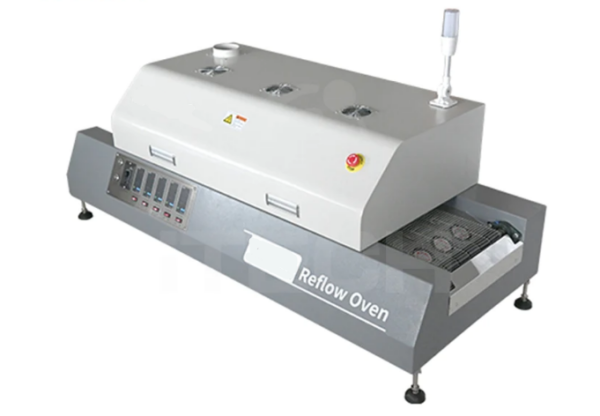

Conveyor Soldering Reflow Oven 5 Zone Model RF200

The RF200 is a very popular desktop conveyorized soldering Reflow Oven. It fits perfectly in small to medium production lines. This conveyor reflow oven uses horizontal convection heating technology to accomplish reflow at much lower temperatures than normally achievable. Using constant, even heating, a great variety of board sizes will reach reflow temperature with the same heat profile. By eliminating set-up time your production line can work to its fullest capacity.  With reduced energy consumption and carefully controlled air-flow and exhaust systems, your plant will only benefit from its introduction. Highlights: Suitable for single sided as well as double sided PCB’s. Can also be used as a conveyor drying oven for many product types Tunnel conveyor oven offering easier/better  performing profiling over drawer style reflow oven Easy processing through an intuitive user interface allowing the perfect reflow profile to be achieved Easy lift clam shell hood Adjustable conveyor Speed Single Phase or three phase operation Forced air convection provides uniform heating and prevents shadowing. 5 zones with maximum temperatures up to 400°C (752°F) . Can be used for both lead free and leaded soldering 100mm Diameter spigot for connection of supplied hose to take away fumes from the location of the oven Two detachable thermocouples for measuring substrate temperatures. Control by RS232 connection is available Exhaust pipe system included for oven output   Heating Zone: Upper 3 Heating Zones Bottom 2 Heating Zones Heating Method: M Type Stainless Steel Finned Heating Pipe Cooling Zone: 2 Natural Air Cooling Heat Tunnel length: 960mm Coveyor Mesh Width: 300mm PCB Width Allowance: Max. 280mm PCB Height Allowance: ≤20mm Mesh Height: 300±20mm Conveyor Speed: Adjustable on Front Panel 0-1350mm/min Conveyor Direction: Left→Right Preheat Time: 15-20mins Soldering Time: 3.5-5.5mins Temperature Range: 0°C-400°C (0°C-752°F) Temperature Control: PID Digital Temperature Control System Voltage: AC 380VAC 50Hz (Three Phase),  220VAC 50Hz (Single Phase) Starting Power: 7KW Working Power: 2.5KW Net Weight: 150kgs Gross Weight: 210kgs Machine Size: L1700×W710×H660mm Package Dimension: 1840 x 840 x 800mm
