Labstation Etching Machine

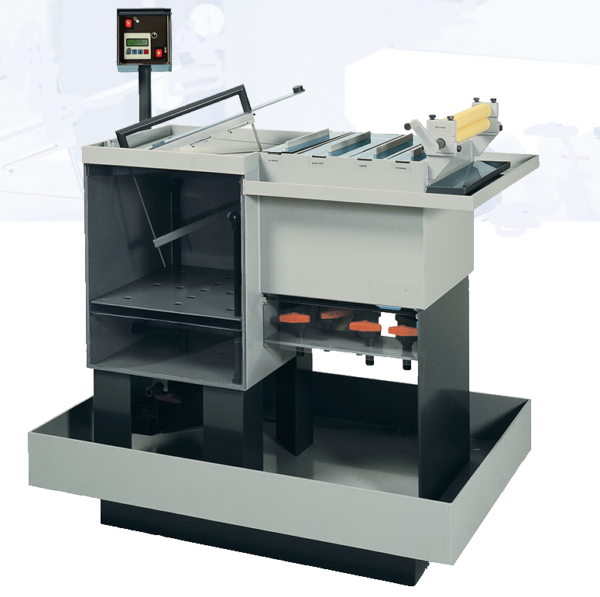

Laboratory etching machine with static and spray rinse, integrated developer tank, a reserve tank for e.g. chemical tinning and a squeeze dryer. The Labstation is suitable for double-sided PCBs. Special emphasis given in the design of the machine to economical and clean etching and rinsing, as well as on low chemical drag out. Etching compartment Maintenance free etching system with solid stream nozzles Etching speed of 35 µm Cu within 90 seconds (warm Fe-III-Cl). Big window to the etching chamber made from transparent PVC. Maximum board size: Labstation Standard 210 x 300 mm /Labstation XL: 300 x 400 Line resolution better than 0.1 mm (100 µm) Suitable for all common etchants. Fe-III-Cl recommended Lid to the etching chamber with safety switch Removable board holder made from Titanium and PVC. Can be locked in drip-off position Easy access to the etching chamber. Strong 1000 W Quartz heater, etching temperature controlled by thermostat Overheat fuse Digital timer with count down, auto reset and beeper Integrated rinsing zone with drip off holder. 3 cog valves for all tanks Suitable for spray developing Developer and rinse compartment Magnetic centrifugal pump to circulate developer Two integrated static rinses, one can be used for neutralization purposes Fresh water spray zone activated by foot switch, including splash protection A reserve tank, e.g. for Immersion tin Features 5 ball valves to drain all tanks, cover protected from the front side. All tanks  supplied with lids Integrated drip tray for all tanks, sure-footed about 120 mm above the ground Integrated mechanical squeeze dryer   Labstation Standard Power supply: 220 V~, 50 Hz, approx. 1,5 kW Dimensions (LxWxH): 1000 x 670 x 1200 mm Working Level: 900 mm Maximum Board/Panel Size : 210 x 300 mm Tank capacity: 1 x 25 l 1 x 9 l 3 x 7 l Weight: approx. 46 kg Labstation XL Power supply: 220 V~, 50 Hz, approx. 1,5 kW Dimensions (LxWxH): 1160 x 770 x 1200 mm Working Level: 900 mm Maximum Board/Panel Size: 300 x 400 mm Tank capacity: 1 x 40 l 1 x 24 l 3 x 15 l Weight: approx. 56 kg
