Dry Film Photoresist Sheet Laminator Model 304

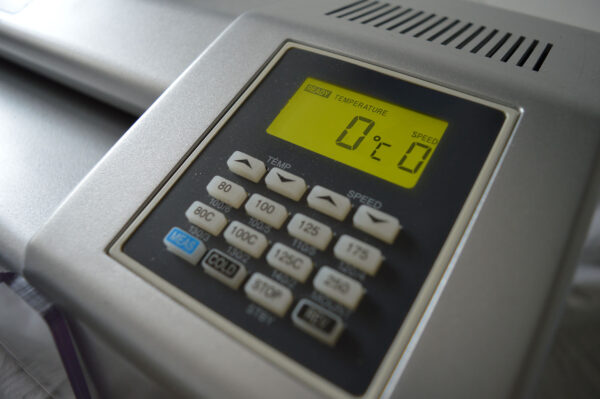

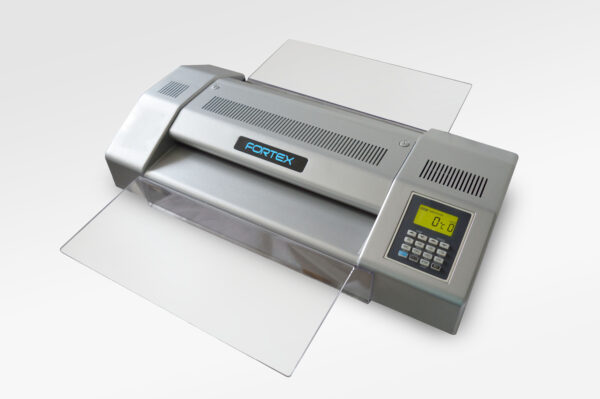

The Fortex 304 Dry Film Sheet Laminator is designed to allow the lamination of Dry Film Photo resist sheets to a wide range of substrate materials including  PCB copper laminates, flexible laminates, Ceramic Wafers, stainless steel, Brass, Silver etc. This Dry Film sheet Laminator offers a cost effective alternative to the Double Sided Dry Film roll Laminators.  One side of the substrate material can be laminated at a time.  The machine will effortlessly  laminate materials to a thickness of 3mm using superior hot roll infra red technology giving uniform heat distribution. All temperature and speed controls are microprocessor controlled with a pre-set condition which can be manually over ridden. Temperature and speed number (1-6) are indicated on the LCD display. The Dry Film Laminating machine is supplied complete with a Load and Exit tray which allows the operator holding the material being processed to support the dry film photo resist and substrate material during the lamination process, thus eliminating the risk of creasing.  Features of this machine include:- Up to 9 Exclusive pre-set temperature and speed setting programs can be stored for a variety of applications just by pressing a button on the digital display panel. Maximum Lamination Width 325mm Warm-up time only 3 minutes due to the Infrared heater design which gives uniform heat distribution across the dual Fusion heat rollers as well as improved temperature control. Replaceable internal  infrared roller heaters Heavy duty motor with regenerative motor drive featuring hardened steel roller /sprocket drive train Accurate digital readout backlit display of roller temperature and speed allow operator to easily adjust settings  Non contact Accurate real-time Temperature read out from  an infrared sensor which also provides real time feedback to the microcontroller Adjustable override controls for both temperature and speed to compensate for variations in material or conditions. Optional footswitch for ease of operation Separate dual pull rollers for ease of transport of substrate materials with no creasing of dry film One touch Reverse function to allow easy cleaning of rollers and for Panel alignment Ready and Wait visual and audible signals alert operator to laminator readiness thus reduces errors. Dual Heater roller and dual pressure roller construction in high grade Silicon rubber allows precision balanced roller pressure across the full width of the panel, with automatic  roller gap adjustment ensuring correct pressure for laminating panels and flexible substrates from 0.1mm up to 3 mm thick. Dry Film Laminator starter kit available     Dry Film Sheet Laminator Specification 304 Model Maximum working width   Minimum Material Thickness Maximum Material Thickness Maximum Material Length   325 mm( 12.8″ )   0.1 mm (0.003″) 3mm (0.118″) Infinite   Temperature range     Cooling System   0 – 150 °C (0-302°F)     AC Fans   Lamination speed 0 – 1 m/minute (3.2 fpm) variable in 6 stages Power Requirements 220/240 Volt 50/60 Hz Single phase 4.4 amp Machine Dimensions without Load/Exit Tray 550 mm 21.7″ (W) 270 mm 10.6″ (L) 130 mm 5.11″ (H) Shipping weight Shipping Dimensions 17 Kg  (35.5lb) Shipping Dimensions 66cm x 36cm x 28cm
