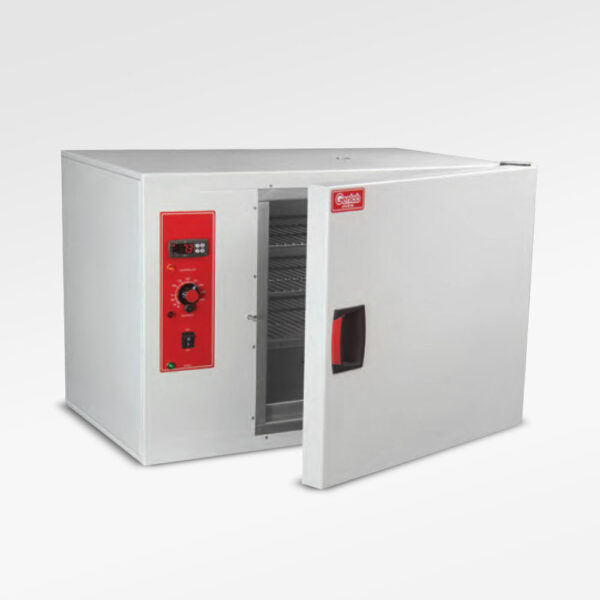

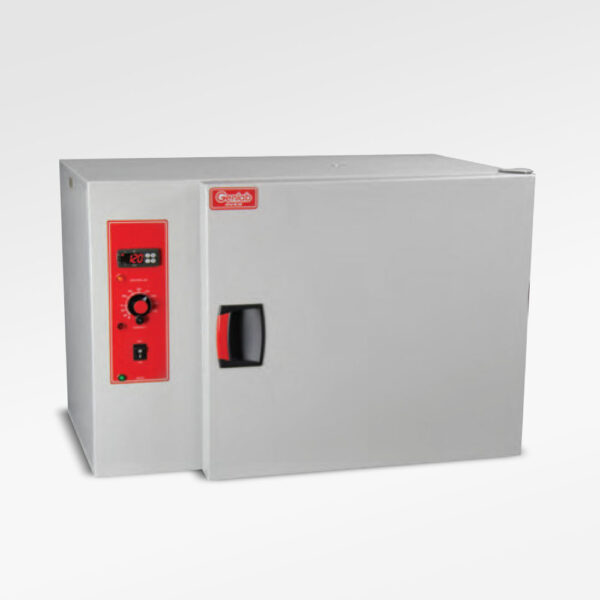

Laboratory Fan Oven Horizontal Style Digital

Laboratory Fan ovens that offer highly efficient, reliable cost effective unit to suit most PCB drying, curing, baking, warming and general laboratory applications. The exterior of the General Purpose Laboratory Fan ovens are constructed from sheet steel finished in powder coated paint. The interior chamber is made from stainless steel and is fitted with fixed shelf runners and removable chrome plated wire grid shelves. The top vent is fitted with a clip to hold a mercury-in-glass thermometer.  Active Fan circulation is fitted to all Laboratory ovens as standard. The General Purpose Laboratory ovens can be supplied with the controls on either the bottom or side of the unit.  These horizontal style units have the controls fitted on the side, and are available from 50 litres upwards. The Laboratory fan ovens are heated by Incoloy sheathed elements positioned below the chamber floor for natural convection and fitted around the fan on the back or side wall of the chamber for mechanical convection. The control system comprises of a direct reading thermostat and overheat thermostat both with calibrated scales and tamper proof lock, a mains on/off switch with a PID Microprocessor controller with dual digital displays of set point and actual temperature, which are auto tuned for each individual oven to optimise the heat up, overshoot and control of temperature All Laboratory fan ovens have a temperature range of 40 to 250 degrees Celcius, with a fluctuation of /-0.75 degrees Celcius Specifications Horizontal Style ref. Number Capacity (litres) Internal dims. (H x W x D cms) External dims. (H x W x D cms) No. of Shelves No. shelf positions Weight (kg) with fan OV/50SSF 50 45 x 37 x 34 57 x 73 x 47 2 3 31 OV/75SSF 75 45 x 49 x 34 57 x 85 x 47 2 3 39 OV/100SSF 100 45 x 49 x 46 57 x 85 x 59 3 4 48 OV/125SSF 125 55 x 49 x 46 68 x 85 x 59 3 5 57 OV/150SSF 150 55 x 49 x 54 68 x 85 x 66 3 5 66 OV/200/SSF 200 75 x 49 x 54 87 x 85 x 66 4 7 85
