Industrial Lab Fan Oven Vertical Style

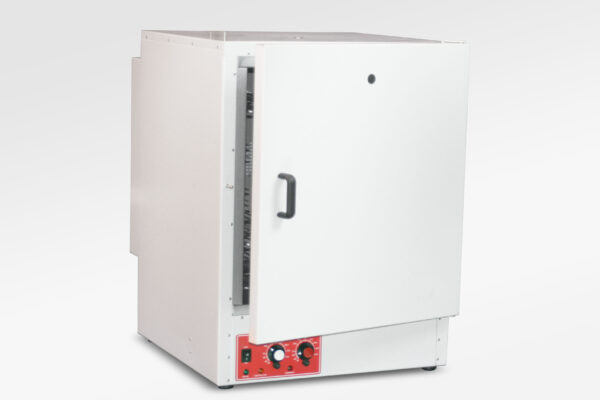

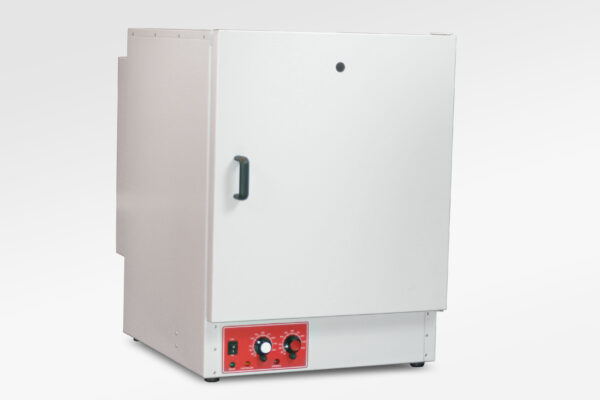

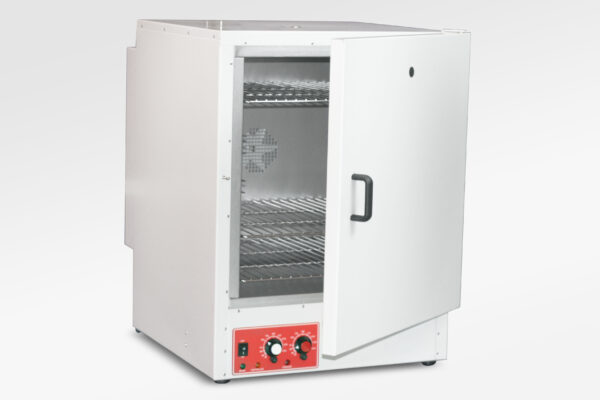

Vertical Style Laboratory Fan ovens that offer highly efficient, reliable cost effective ovens to suit most PCB drying, curing, baking, warming and general laboratory applications. The exterior of the General Purpose Laboratory Fan ovens are constructed from sheet steel finished in powder coated paint. The interior chamber is made from stainless steel and is fitted with fixed shelf runners and removable chrome plated wire grid shelves. The top vent is fitted with a clip to hold a mercury-in-glass thermometer.  Active Fan circulation as fitted to all Laboratory ovens as standard. The General Purpose Laboratory ovens can be supplied with the controls on either the bottom or side of the unit. These vertical style units are fitted with the controls below the hinged door.   The Laboratory fan ovens are heated by Incoloy sheathed elements positioned below the chamber floor for natural convection and fitted around the fan on the back or side wall of the chamber for mechanical convection. The control system comprises of a direct reading thermostat and overheat thermostat both with calibrated scales and tamper proof lock, a mains on/off switch with indicators for the heating controls.  All ovens have a temperature range of 40 to 250 degrees Celcius, with a fluctuation of /-0.75 degrees Celcius   Specifications  Vertical Style ref. Number Capacity (litres) Internal dims. (H x W x D cms) External dims. (H x W x D cms) No. of Shelves No. shelf positions Weight (kg) with fan MINO/30SSF 30 24 x 36 x 35 50 x 48 x 62 2 2 20 MINO/40SSF 40 32 x 36 x 35 58 x 48 x 62 2 3 23 MINO/50SSF 50 33 x 49 x 33 59 x 61 x 59 2 3 26 MINO/75SSF 75 33 x 49 x 45 59 x 61 x 72 2 3 34
