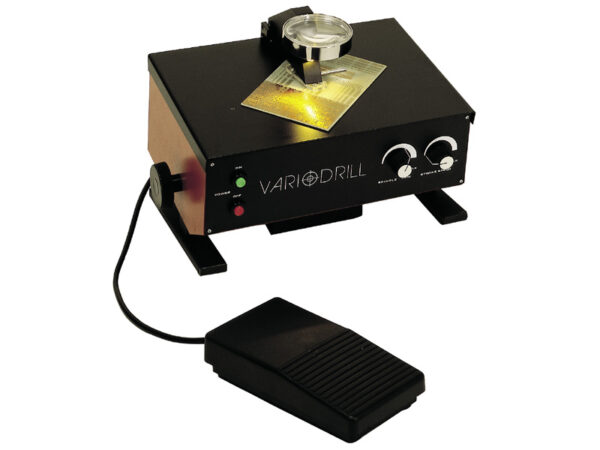

VarioDrill PCB Drilling Machine

VARIODRILL is a PCB drilling machine for prototypes and small batch production. The demand for operating comfort and high quality has led to an untraditional design which meets the necessary requirements for an ergonomically correct working position.   Features Throat depth: 115 mm DC Motor, 100 Watts / 110 Volt Infinitely adjustable 10000 ….. 30.000 RPM Power output 90 Watts Chuck: 1/8″ (3,2mm) Drill size 0,6 to 3,2 mm Adjustable stroke speed Adjustable m/c tilting between 0 – 30 Lighting unit built-in 6 V – 1,5 W Complete system with integrated dust extraction Including external vacuum cleaner Including foot switch for easy operating, that way Booth hands are free to positioning the PCB   Technical data Mains supply: 220 V~, 50Hz, 800 VA Size (L x W x H): approx. 360 x 250 x 240 mm Chuck: 1/8″ (3,175 mm) Stroke speed: adjustable, max 60 strokes per min Max. Board size: 200mm x unlimited Weight: approx. 8 kg All specifications are subject to change without notice.
