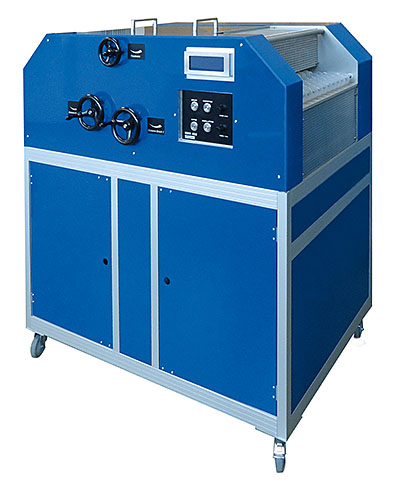

PCB Brush Cleaning Machine 400mm Model RBM402

The standard RBM402BLC machine is capable of brushing, rinsing and drying, designed for use in professional small series production and laboratories.  This unit is capable of virtually all cleaning operations that are required in the processes of PCB production.  Example processes are surface preparation prior to Photo Dry Film Laminating or Plated through hole PTH, Deburring after drilling. The KF version of this Brushing machine has a closed loop rinsing system with an integrated water rinse tank, filter and pump unit.  This saves the operator from having to supply a fresh water supply and having to comply with local water regulations.  There is also a BLC low cost bench top version of the machine available that can be connected to an external water supply. The RBM402 series has the following features:- -Wet processing -Double sided brushing action -Quick change chuck to facilitate easy brush changeover -Aluminium, PVC, Stainless Steel construction -Transport top lid with security switch -Working width 400 mm -Board thickness 0.3 – 5 mm -Conveyor speed 0.2 – 2 m/min -Adjustable brushing pressure and oscillation speed -Adjustable transport speed -Oscillation length 10 mm -Robust construction guaranteeing longlife -Mechanical drying by squeezing rollers -Additional built-in hot air dryer   Technical Data Working width: 400 mm Board thickness (rigid boards only): 0.3 – 5mm Board sizes min.: 80 x 175 mm recommended, 80 x 120 mm possible Board sizes max.: 400 mm x endless Brushing speed: 1360 rpm Conveyor speed: 0.2 – 2 m/min Oscillation stroke: 10 mm Oscillation frequency: 10 – 110 l/min Brushing stroke on upper roller: max. 20 mm Brushing stroke on lower roller: max. 15 mm Feed per turn of hand wheel: 0.266 mm Brushing roller length: 410 mm Brushing roller outside diameter: 89 – 91 mm Brushing roller inner diameter: 35 mm Rinsing system water inlet: 20 mm (version F/BLC) Rinsing system water outlet: 40 mm (version F/BLC) Rinsing system pressure max.: 1.5 bar (version F/BLC) Rinsing system water consumption: 26 l/min. (version F/BLC) Rinsing system water consumption: 0 l/min. (version KF) Power supply: 220 V, 50 Hz, max. 12 A Dimensions (L x W x H): 111 cm x 75 cm x 116 cm Weight: 220 kg (RBM 402KF) / 170 kg (RBM 402 BLC)
