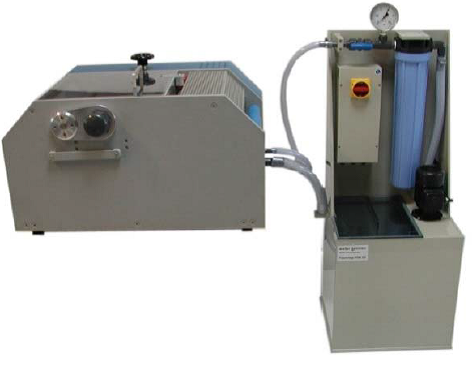

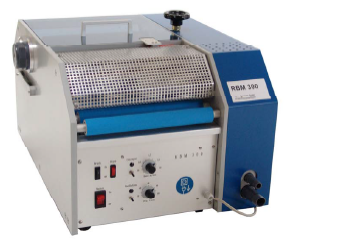

Brush Cleaning Machine 305mm Model RBM300

A professional brush cleaning machine capable of brushing, rinsing and drying, designed for use in small series production and laboratories.  This unit is capable of  virtually all cleaning operations that are required in the processes of PCB production and metal surface treatment including professional cleaning of the surface. The RBM300 Brush cleaning machine has the following features:- Bench top machine, wet processing Single side action Quick change chuck to facilitate easy brush changeover for different processes for example finishing PCB s prior to dry film photo laminating, pth, oxide removal and deburring after drilling Aluminium, PVC, Stainless Steel construction Transport top lid with security switch Working width 300 mm Board thickness 0.3 – 3 mm Conveyor speed 0.2 – 2 m/min Adjustable brushing pressure and oscillation speed Oscillation length 10 mm Robust construction guaranteeing longlife Mechanical drying by squeezing rollers Additional built-in hot air dryer Technical data Electrical Connection: 110 – 230 V, 50–60 Hz Dimensions (L x W x H): 760 x 590 x 415 mm Working width: 300 mm Board thickness (rigid boards only): 0,3 – 3 mm Brushing speed : 1360 RPM Oscillation stroke : 10 mm Oscillation frequency: ca. 10 – 110 H/min Conveyor speed: ca. 0,2 – 2 m/min Rinse water consumption: 6,8 l/min Weight: 70 kg Board size (minimum): 80 x 160 mm Brushing roller stroke: max. 20 mm Infeed per turn of hand wheel: ca. 1 mm Brushing roller length: 310 mm Brushing roller outside diameter: 89-91 mm Brushing roller inner diameter: 35 mm Rinse water inlet: 20 mm Rinse water outlet: 32 mm Rinse water pressure: 1.5 bar A separate rinse water treatment tank is available as an option There is an optional unit RBM400 brushing machine available featuring a 400mm working width available
