Rivets Through Hole

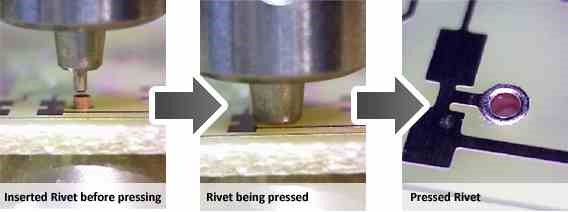

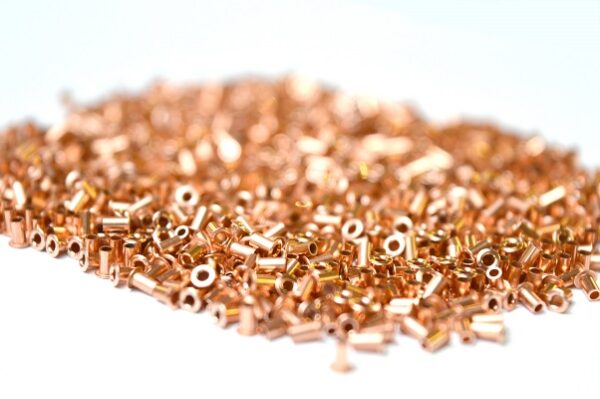

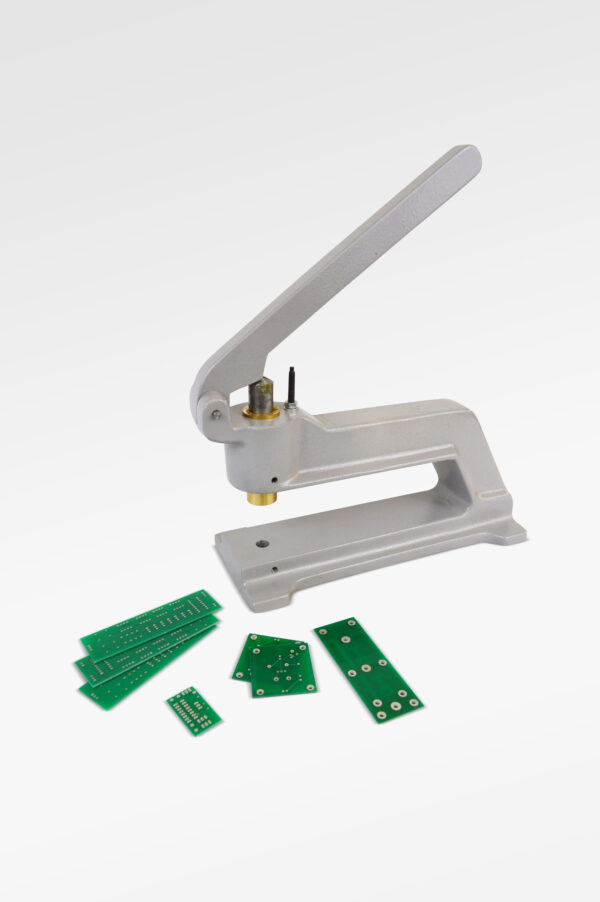

The PTH400 press is a hand-operated press tool machine, designed especially for mechanical through-hole-plating purposes.  Professional through-hole-plating by individual tools for each rivet/eyelet diameter. Optimal contacts, even without soldering.  The PTH400 Press offers high quality results with the copper rivets and eyelets being used for double sided circuits to be plated as required for vias.  (Joining tracks on opposite sides of double sided circuit boards). Another popular use of the PTH400 press tool is to use the rivets for mechanical Electronic assembly applications such fixing battery holders or contacts to rigid, semi rigid and flexible circuit boards etc.  These larger rivets/eyelets are Brass Bright Electro Tin Plated. SPECIAL FEATURES: Adjustable depth limiter Maximum board size: 400 mm (15.75 Inches) Interchangeable Tools for different sizes of rivets/eyelets Please order your PTH400 Mechanical Through Hole Press and corresponding Tools and Rivets/Eyelets in the sizes that you require. The following sizes of rivets are available:- Rivet with inner diameter /mm (Inches) 0.4mm (0.016″) 0.6mm (0.024″) 0.8mm (0.032″) 1.0mm (0.039″) 1.2mm (0.047″) 1.5mm (0.059″) 2.6mm (0.102″) Required drill diameter /mm (Inches) 0.6mm (0.024″) 0.8mm (0.032″) 1.0mm (0.039″) 1.5mm (0.059″) 1.7mm (0.067″) 2.0mm (0.079″) 3.2mm (0.125″)   Rivets Technical Data Standard Tubular rivets according to DIN 7340, Form A Inner dia. mm/Inch Outer dia. ±0.03mm (±0.001″) Length ±0.10mm (±0.004″) Head dia. ±0.15mm (±0.006″) Wall thickness ±10% 0.4mm(0.016″) 0.6mm(0.024″) 2.2mm(0.087″) 0.9mm(0.035″) 0.1mm(0.004″) 0.6mm(0.024″) 0.8mm(0.032″) 2.2mm(0.087″) 1.3mm(0.051″) 0.1mm(0.004″) 0.8mm(0.032″) 1.0mm(0.039″) 2.2mm(0.087″) 1.6mm(0.063″) 0.1mm(0.004″) 1.0mm(0.039″) 1.4mm(0.047″) 2.5mm(0.098″) 2.2mm(0.087″) 0.2mm(0.008″) 1.2mm(0.047″) 1.6mm(0.059″) 2.6mm(0.102″) 2.6mm(0.102″) 0.2mm(0.008″) 1.5mm(0.059″) 1.9mm(0.075″) 2.7mm(0.105″) 3.1mm(0.122″) 0.2mm(0.008″) 2.6mm(0.079″) 3.1mm(0.122″) 3.9mm(0.154″) 5.1mm(0.200″) 0.3mm(0.019″) NOTE: When drilling on CNC machines, the drill diameter should be 0.1mm (0.004″) larger than the above outer diameter   Throat Depth 200mm (7.87 Inches) Width 9.5cm x Height 21cm x Length 30cm Shipping Weight 4Kg Shipping Dimensions 43cm x 43cm x 23cm
