Pick & Place Machine

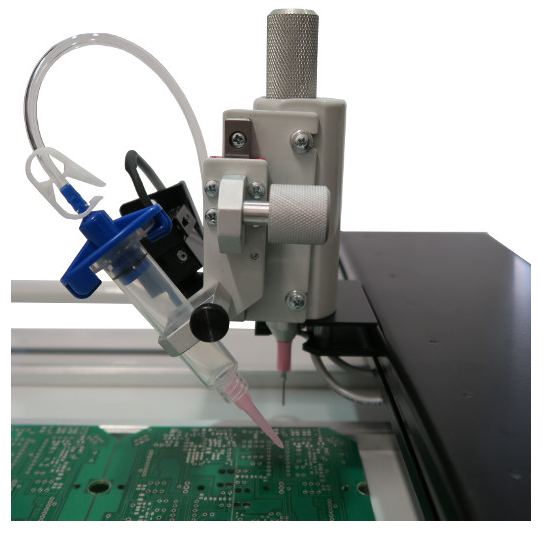

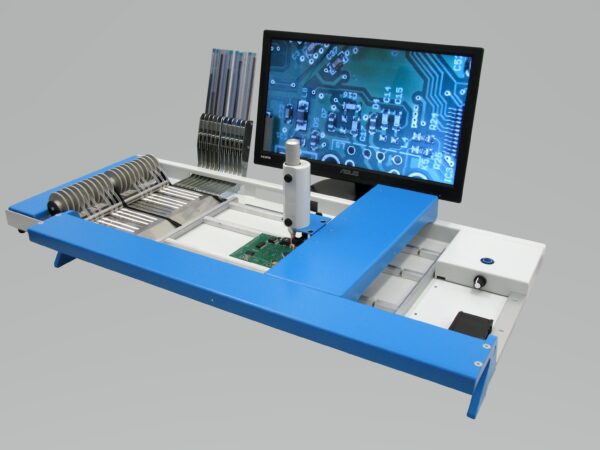

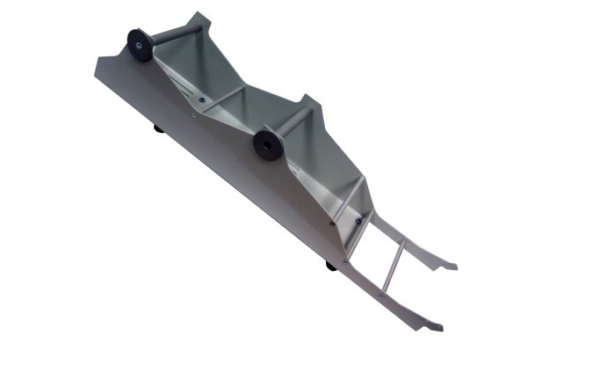

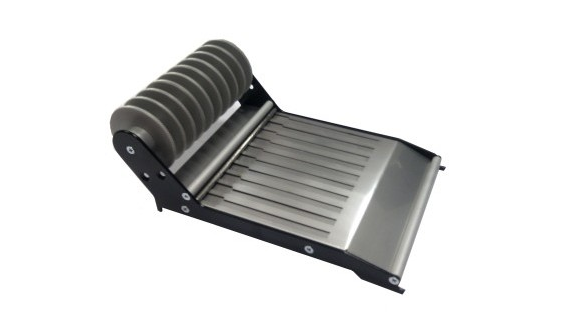

The MPP1 unit is a manual pick & place system for the accurate and precise placement of surface mount electronic components onto a PCB circuit board. The machine is packed with convenient features to maximize prototyping and small run throughput, while minimizing operator strain and the occurrence of defects. Prior to placement of the surface mount components the pads of the circuit board require solder paste to have being applied. Customarily, the Solderpaste is stencil printed using a SMT stencil printer; alternatively there is an optional solderpaste/Glue dispenser available for this machine as an optional extra. Once components have been placed, the PCB assembly requires ‘reflow’ in an appropriate reflow oven to complete the fabrication cycle. This unit can accommodate PCB panels of up to 380mm x 295mm (15″ x 11.6″) with a working area of up to 380mm x 250mm (15″ x 9.8″) The MPP1 is a hand-operated SMT Assembly Manipulator with HD video, new manual system for the placement of SMT-components. It is a perfect ergonomic station including a lot of functions. Slight arm movement in the X and Y axis allows comfortable selection of components and their accurate placement all over the workpiece. Place a component with the head on the Z axis.  The components can also easily be rotated through 360°. A HD camera is located near the vacuum pipette and connected to a HD monitor helps the operator, for the accurate placement of fine-pitch components.  There is also a small but powerful light source and vacuum switch integrated into the placement head. The solid reliable construction provides a better grip for the operator with a large working area of 380 x 295mm. Perfect ergonomics Very efficient working area of 380x295mm Placement made easier by an optional Full HD camera connected to a 19.5″ (50cm) TFT LCD monitor HDMI Monitor connection so a larger monitor can be connected if desired 0201, QFN etc Package Placement accuracy Vacuum pump with a selection of syringes Arm support assures a comfortable position for operator Sensitive placement head with 360° rotation of pipette and integrated vacuum switch Efficient LED illumination lighting built into the arm Brigtness adjustable from 0-100% Optional Feeders ensure the machine is suitable for taped or reeled Surface mount components Vacuum pump delivered as standard 3 PCB Board supports <70dB(A) Sound level 230V at 50/60Hz Electrical supply (120V 60Hz AC Version available by request) Specifications:- Manipulator dimensions (l / w / h): 790 x 390 x 170 mm Max. size with feeders: 1140 x 650 mm Arm movement in x / y / z axis: 470 x 230 x 15 mm Working area max: 380 x 250 mm (15″ x 9.8″) Head power supply: 230VAC50/60Hz Adapter 12 V, 800 mA (Optional 120v 50/60Hz Operating adapter available) Vacuum pump: 230 VAC, 6 W Video camera: Viewing angle: 78 ° CCD sensor: 1/4 “- 8 Mega pixels Standard Zoom 10:1 Video resolution: 1080p 1920 x 1080 Pixels 30FPS – Full HD Monitor: Standard HDMI connection Supplied monitor:- Display dimensions: 19.5 “(50 cm) widescreen 16: 9 Resolution: 1600 x 900 pixels Dimensions with stand: 462 x 353 x 189 mm Applications Industrial, Educational Contents Please note the standard MPP1-VISION is supplied as a complete working system with Placement station comprises colour camera, 19.5″ TFT monitor, vacuum pump 2 x needles and suction cups and 3 x PCB holders.  No feeders are supplied these must be purchased separately. Shipping Dimensions 83 x 27 x 47cm Shipping Weight 11Kg
